Yodogawa Electric Tool Mfg. Co., Ltd.
Index

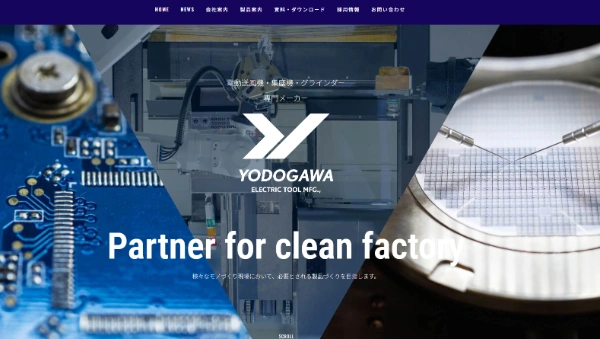

Source: Yodogawa Electric Tool Mfg. Co., Ltd.
https://www.yodogawadenki.co.jp/
https://www.yodogawadenki.co.jp/
Yodogawa Electric Tool Mfg. Co., Ltd. is a Japanese manufacturer of environmental equipment, including blowers and dust collectors. The company's blowers are equipped with proprietary motors developed and manufactured in-house.
The product lineup includes models ranging from compact blowers to high-static-pressure and low-noise variants. The products are designed for different installation conditions, airflow requirements, and static pressure requirements.
Product Examples of Industrial Fans
Offered by Yodogawa Electric Tool Mfg. Co., Ltd.
Plate-Type Electric Blower N Series N5
Source: Yodogawa Electric Tool Mfg. Co., Ltd.
https://www.yodogawadenki.co.jp/products/Blower/blower_plate.html
https://www.yodogawadenki.co.jp/products/Blower/blower_plate.html
Applications of
Plate-Type Electric Blower N Series N5
The N5 is an electric blower with a simple structural design and a plate-type impeller. It is used for general air supply and exhaust, as well as integration into industrial machinery such as printing presses, industrial dryers, and incinerators.
Its plate-type design can be used for applications including air circulation, cooling, drying, suction, and conveying.
Product Specifications
| Dimensions (H x W x D, in. / mm) | 15.1 x 15.6 x 15.0 in. / 384 x 397 x 382 mm |
|---|---|
| Weight (lbs / kg) | 44.1 lbs / 20.0 kg |
| Primary Material | Housing: Cast Aluminum, Filter: Molded Polyester Non-woven Fabric |
Source 1: Yodogawa Electric Tool Mfg. Co., Ltd.
https://www.yodogawadenki.co.jp/products/Blower/blower_plate.html
https://www.yodogawadenki.co.jp/products/Blower/blower_plate.html
Source 2: Yodogawa Electric Tool Mfg. Co., Ltd.
https://www.yodogawadenki.co.jp/pdf/N5(H15701).pdf
https://www.yodogawadenki.co.jp/pdf/N5(H15701).pdf

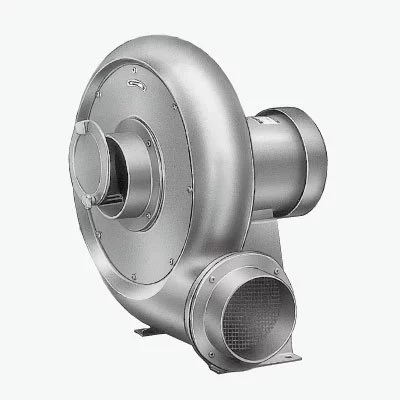

Turbo-Type Electric Blower BN Series BN5TP
Source: Yodogawa Electric Tool Mfg. Co., Ltd.
https://www.yodogawadenki.co.jp/products/Blower/blower_turbo.html#BN
https://www.yodogawadenki.co.jp/products/Blower/blower_turbo.html#BN
Applications of
Turbo-Type Electric Blower BN Series BN5TP
The BN5TP is an electric blower designed to provide high static pressure and airflow for applications with relatively high pressure losses. It features a turbo impeller and an IE3 motor.
With a broad rated operating range, it is used in applications requiring significant static pressure, such as dust collectors, industrial dryers, equipment cooling, and air conveying or suction.
Product Specifications
| Dimensions (H x W x D, in. / mm) | 21.5 x 14.7 x 20.9 in. / 545 x 373 x 532 mm |
|---|---|
| Weight (lbs / kg) | 66.1 lbs / 30.0 kg |
| Primary Material | Cast Aluminum |
Source 1: Yodogawa Electric Tool Mfg. Co., Ltd.
https://www.yodogawadenki.co.jp/products/Blower/blower_turbo.html#BN
https://www.yodogawadenki.co.jp/products/Blower/blower_turbo.html#BN
Source 2: Yodogawa Electric Tool Mfg. Co., Ltd.
https://www.yodogawadenki.co.jp/pdf/BN5TP(J16401).pdf
https://www.yodogawadenki.co.jp/pdf/BN5TP(J16401).pdf

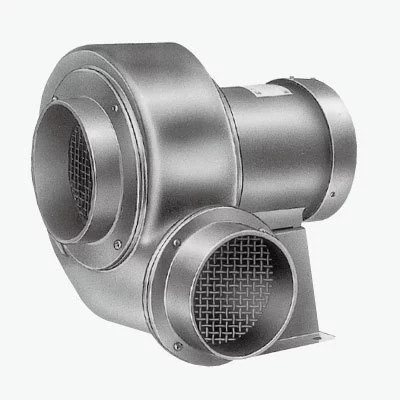

Sirocco-Type Electric Blower CN Series CN5
Source: Yodogawa Electric Tool Mfg. Co., Ltd.
https://www.yodogawadenki.co.jp/products/Blower/blower_sirocco.html
https://www.yodogawadenki.co.jp/products/Blower/blower_sirocco.html
Applications of
Sirocco-Type Electric Blower CN Series CN5
The CN5 is a compact electric blower designed for applications with limited installation space. Its multi-blade Sirocco impeller provides a compact design while maintaining airflow capacity.
The CN5 can be used for equipment where installation space and noise levels are considerations, including printing presses and other machinery.
Product Specifications
| Dimensions (H x W x D, in. / mm) | 13.1 x 11.4 x 10.3 in. / 333 x 289 x 262 mm |
|---|---|
| Weight (lbs / kg) | 38.6 lbs / 17.5 kg |
| Primary Material | Die-Cast Aluminum |
Source 1: Yodogawa Electric Tool Mfg. Co., Ltd.
https://www.yodogawadenki.co.jp/products/Blower/blower_sirocco.html
https://www.yodogawadenki.co.jp/products/Blower/blower_sirocco.html
Source 2: Yodogawa Electric Tool Mfg. Co., Ltd.
https://www.yodogawadenki.co.jp/pdf/CN5(F12201).pdf
https://www.yodogawadenki.co.jp/pdf/CN5(F12201).pdf
Implementation Case Studies
of Yodogawa Electric Tool Mfg. Co., Ltd. Industrial Fans
The official website does not provide detailed case studies, but lists various applications for its industrial blowers, including printing machines, dryers, dust collectors, and other industrial equipment.
What Are Yodogawa Electric Tool Mfg. Co., Ltd. Industrial Fans?
Versatile Industrial Blowers Powered by Proprietary Motors
Yodogawa Electric Tool Mfg. Co., Ltd. provides a range of industrial blowers for different application requirements.
By offering distinct configurations—including Plate-Type, Turbo-Type, and Sirocco-Type blowers—engineers can specify models according to installation space, required airflow (CFM), and static pressure.
The company manufactures its own blower motors as part of its in-house production system.
Our media independently researches and introduces recommended industrial fans based on specific needs like cooling, exhaust, and ventilation. Please check our 3 selected products below.
Company Information for Yodogawa Electric Tool Mfg. Co., Ltd.
| Company Name | Yodogawa Electric Tool Mfg. Co., Ltd. |
|---|---|
| Headquarters Address | 2-1-8 Hashii, Toyonaka City, Osaka, Japan |
| Official Website | https://www.yodogawadenki.co.jp/ |
