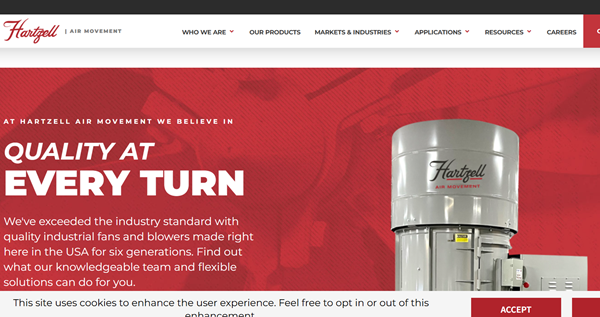

Hartzell Air Movement
Source: Hartzell Air Movement
https://www.hartzell.com/
https://www.hartzell.com/
This article introduces representative product examples, use cases, and implementation examples of industrial fans offered by Hartzell Air Movement. Please use it as a reference for understanding the conditions and installation settings in which fans tend to perform well in industrial and commercial environments such as heavy industry, marine, wastewater treatment, and energy.
Product Examples of Industrial Fans
Offered by Hartzell Air Movement
Panel Fan "Series 02 & 09"
Source: Hartzell Air Movement
https://hartzellairmovement.com/products/panel-fan/
https://hartzellairmovement.com/products/panel-fan/
Situations Where
Panel Fan Series 02 & 09 Works Best
This is a panel fan designed for direct wall mounting, suited to a range of ventilation applications including general ventilation, smoke and gas removal, cooling, air supply, and exhaust. Its sturdy solid steel panel and frame allow for vertical or horizontal mounting in wall openings, offering flexible installation options that can be adapted to a facility's structure.
Product Specifications
| Size | 12 inches to 60 inches |
|---|---|
| Material | Steel / SS304 / SS316 / Aluminum |
| Pressure Range | 0 to 1.5 inches WG |
| Mounting Type | Wall (vertical / horizontal) |
| Bearing Life | Minimum 50,000 hours (L10 basis) |
| Certifications | AMCA Certified / ABS Certified |

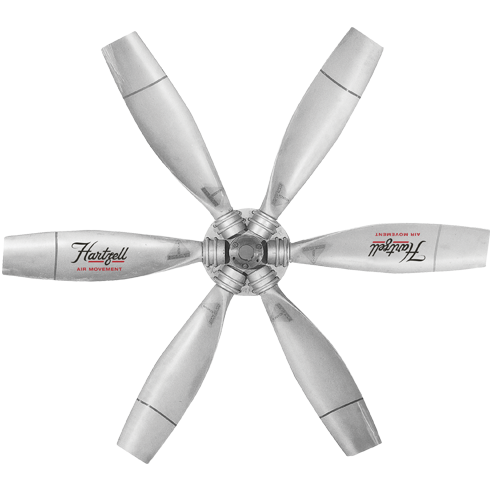

Aluminum Adjustable Pitch Fan Assembly "Series 89, 90, 90R, 90U, 91 & 92"
Source: Hartzell Air Movement
https://www.hartzell.com/
https://www.hartzell.com/
Situations Where
Variable Pitch Fan Assembly Works Best
This is an aluminum adjustable pitch propeller assembly suited to large facilities that need to move large volumes of clean air at low pressure, such as heat exchangers, tunnel ventilation, and large warehouse ventilation. It features a lineup of series tailored to different applications, including an airfoil cross-section design (Series 90 line), a wide blade design (Series 92), and field-adjustable manual pitch angle (Series 91), with a configuration selectable between 4 or 6 blades.
Product Specifications
| Size | 48 inches to 144 inches |
|---|---|
| Material | Aluminum |
| Pressure Range | 0 to 1.5 inches WG |
| Maximum Tip Speed | 15,000 FPM (Series 90, 89, 92) / 11,000 FPM (Series 91) |
| Maximum Operating Temperature | Standard 200°F / Up to 300°F (Series 91) |
| Type | Propeller Assembly (4-blade or 6-blade) |
Implementation Case Studies
of Hartzell Air Movement's Industrial Fans
No specific examples of industrial fan use were available on the official website.
What is Hartzell Air Movement's Industrial Fans?
Industrial fans that support safe and stable operation in demanding environments such as heavy industry, marine, wastewater treatment, and energy
Hartzell Air Movement's fans are highly durable industrial fans designed for sites such as heavy industry, marine, wastewater treatment, and energy facilities, where long-term stable operation is required under demanding environmental conditions, including corrosive substances, high temperatures, harmful gases, and dust. The company offers a 5-year warranty and has maintained manufacturing at its own factory in Piqua, Ohio across six generations, with a stated commitment to ensuring quality and reliability. *Warranty terms and duration are subject to change, so please contact the manufacturer directly for details.
Our media independently researches and introduces recommended industrial fans based on specific needs like cooling, exhaust, and ventilation. Please check our 3 selected products below.
Company Information:Hartzell Air Movement
| Company Name | Hartzell Air Movement |
|---|---|
| Headquarters Address | 910 South Downing Street, Piqua, Ohio 45356-0919, USA |
| Official Website | https://hartzellairmovement.com/ |
Three Recommended
Industrial Fan Products Chosen
by Cooling, Exhaust, and Ventilation
Industrial Fan Products Chosen
by Cooling, Exhaust, and Ventilation
Cooling
For Heat Stress Prevention
For Heat Stress Prevention
Gojoh
COOL FAN MIST
Source: Gojoh Official Website
(https://smile-fans.jp/products/cool-fan-mist/)
(https://smile-fans.jp/products/cool-fan-mist/)
6°C cooler than the surroundings (*1) for 8 hours. Powerful 25m reach + auto-swing to optimize your entire workspace.
Durable, hygienic stainless steel at a portable 210 lbs. Chemical-resistant and built for frequent relocation and long-term use.
| Type | Evaporative cooler |
|---|---|
| Dimensions (in/mm) |
Approx. 59.1" × 25.6" × 70.9" (1500 × 650 × 1800 mm) |
| Coverage Area |
Approx. 2,150–3,230 sq ft |
| Weight | Approx. 210 lb |
Exhaust
For Dust and Smoke Control in Confined Spaces
For Dust and Smoke Control in Confined Spaces
Allegro
8" COM-PAX-IAL Blower
Source: Allegro Official Website
(https://www.allegrosafety.com/product/8-axial-ac-plastic-mini-pak-blower/)
(https://www.allegrosafety.com/product/8-axial-ac-plastic-mini-pak-blower/)
Rapidly exhausts dust/smoke replacing approx. 23.5m³ of air/min (*2). Lightweight polyethylene body is corrosion, UV, and chemical resistant for harsh environments.
Weighs under 19 lbs (lighter than steel) with integrated ducting. Easy to carry and set up, ensuring ventilation protocols are never skipped due to hassle.
| Type | Portable ventilation blower |
|---|---|
| Dimensions (in/mm) |
Approx. 17.5" × 11.3" × 13.5" (445 × 286 × 343 mm) |
| Coverage Area |
N/A |
| Weight | Approx. 19 lb |
Ventilation
For Stagnant Air and Moisture Control
For Stagnant Air and Moisture Control
DuctSox
ZOO FANS H series
Source: DuctSox Official Website
(https://www.zoofans.com/our-company)
(https://www.zoofans.com/our-company)
Designed by spatial volume, not floor area. Creates a column of air mixing ceiling to floor to inhibit condensation, mold, and rust.
Includes one-touch mounting hardware. Low-cost installation even in warehouses where large HVLS fans won't fit.
| Type | Destratification Fan |
|---|---|
| Size (mm) | 445×391×551 (*3) |
| Coverage | 25 ft (*3) |
| Weight | 20 lb (*3) |
*1 Cool air temperature may vary depending on conditions such as ambient temperature and the surrounding environment. Because it uses water, use caution in areas where moisture is a concern.
*2 Basis and Calculation Method: Calculated based on the maximum airflow (Straight) of “791 CFM” for the “8" (20.3 cm) AXIAL AC PLASTIC MINI-PAK BLOWER (9532-15)” as listed in the catalog.
[Formula] 791 CFM × 0.02832 ≈ 22.4 m³/min (Converted as 1 CFM ≈ 0.02832 m³/min) | Source: Allegro Official Website [PDF] (https://www.allegrosafety.com/wp-content/uploads/2023/01/9532-15-9532-25-9532-15E-9532-25E-AC-Plastic-Blower.pdf)
*3 All specifications are for the H25-EC model.
