This article introduces representative product examples and use cases for industrial fans offered by Moduflow. Use this article as a reference when considering installation in industrial and commercial environments to see which site conditions industrial fans work best in.
Product Examples of Industrial Fans
Offered by Moduflow

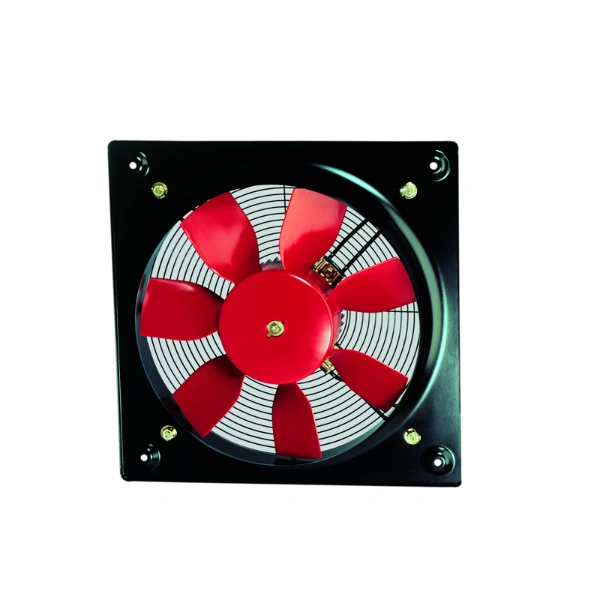

General-Purpose Axial Fan
“HCBB / HCBT (Plate Axial Fan)”
Source: Moduflow Official Website
https://moduflow.co.uk/product/hcbb-hcbt/
https://moduflow.co.uk/product/hcbb-hcbt/
Situations Where
HCBB / HCBT (Plate Axial Fan) Works Best
This is a plate-mounted axial fan designed to be installed on factory and warehouse walls. It also supports speed control. It uses an aluminum impeller, enabling efficient airflow. With an IP65 protection rating and a Class F insulated motor, it can be used in environments with dust and water exposure.
Product Specifications
| Fan type | Axial |
|---|---|
| Maximum diameter | Ø1,000 |
| Power supply | HCBB: Single-phase HCBT: Three-phase |
| Motor type | Electric motor (4-pole / 6-pole) |
| Motor (standard) | IP65 Class F insulation Built-in thermal protection |
| Control method | Autotransformer control / Inverter control *For Ø630, 710, 800, 900, and 1,000 models, inverter control only. |
| Control | Supports speed control |
| Materials | Aluminum (impeller) |
| Standards and durability | IP65 |
High-Temperature, Heat-Resistant Fan
“Bifurcated”
Source: Moduflow official website
https://moduflow.co.uk/product/cylindrical-inline-axial-flow-bifurcated-fans/
https://moduflow.co.uk/product/cylindrical-inline-axial-flow-bifurcated-fans/
Situations Where
Bifurcated Works Best
Bifurcated fans can address the issue of “fans failing quickly due to heat or oil.” Since the motor is isolated outside the airflow, even when exhausting air containing hot air, corrosive gases, or sticky dust, it is designed so the motor itself is less likely to be damaged.
Product Specifications
| Fan type | Axial fan (inline bifurcated type) |
|---|---|
| Motor | Totally enclosed fan cooled (TEFC) B3 foot mount Class F insulation |
| Standards and durability | IP55 |
| Materials | Body: Pre-galvanized steel sheet Blade: Glass fiber-reinforced polypropylene or glass |
| Materials | Steel sheet / Glass fiber-reinforced resin / Glass |
Implementation Case Studies of
Moduflow’s Industrial Fans
No specific examples of industrial fan use were available on the official website.
What is Moduflow's Industrial Fan?
Resilient Ventilation for Harsh and Corrosive Environments
Moduflow provides rugged axial and bifurcated fans engineered to survive extreme industrial conditions. By isolating the motor from the airstream, they offer a practical solution to exhaust hot or corrosive gases while significantly reducing equipment failure risk.
Our media independently researches and introduces recommended industrial fans based on specific needs like cooling, exhaust, and ventilation. Please check our 3 selected products below.
Company Information:
Moduflow
| Company Name | Moduflow Fan Systems Ltd |
|---|---|
| Headquarters Address | Scarth Road, Sowerby Woods Industrial Estate, Barrow-in-Furness, Cumbria LA14 4RF, UK |
| Official Website | https://www.moduflow.co.uk/ |
Three Recommended
Industrial Fan Products Chosen
by Cooling, Exhaust, and Ventilation
Industrial Fan Products Chosen
by Cooling, Exhaust, and Ventilation
Cooling
For Heat Stress Prevention
For Heat Stress Prevention
Gojoh
COOL FAN MIST
Source: Gojoh Official Website
(https://smile-fans.jp/products/cool-fan-mist/)
(https://smile-fans.jp/products/cool-fan-mist/)
6°C cooler than the surroundings (*1) for 8 hours. Powerful 25m reach + auto-swing to optimize your entire workspace.
Durable, hygienic stainless steel at a portable 210 lbs. Chemical-resistant and built for frequent relocation and long-term use.
| Type | Evaporative cooler |
|---|---|
| Dimensions (in/mm) |
Approx. 59.1" × 25.6" × 70.9" (1500 × 650 × 1800 mm) |
| Coverage Area |
Approx. 2,150–3,230 sq ft |
| Weight | Approx. 210 lb |
Exhaust
For Dust and Smoke Control in Confined Spaces
For Dust and Smoke Control in Confined Spaces
Allegro
8" COM-PAX-IAL Blower
Source: Allegro Official Website
(https://www.allegrosafety.com/product/8-axial-ac-plastic-mini-pak-blower/)
(https://www.allegrosafety.com/product/8-axial-ac-plastic-mini-pak-blower/)
Rapidly exhausts dust/smoke replacing approx. 23.5m³ of air/min (*2). Lightweight polyethylene body is corrosion, UV, and chemical resistant for harsh environments.
Weighs under 19 lbs (lighter than steel) with integrated ducting. Easy to carry and set up, ensuring ventilation protocols are never skipped due to hassle.
| Type | Portable ventilation blower |
|---|---|
| Dimensions (in/mm) |
Approx. 17.5" × 11.3" × 13.5" (445 × 286 × 343 mm) |
| Coverage Area |
N/A |
| Weight | Approx. 19 lb |
Ventilation
For Stagnant Air and Moisture Control
For Stagnant Air and Moisture Control
DuctSox
ZOO FANS H series
Source: DuctSox Official Website
(https://www.zoofans.com/our-company)
(https://www.zoofans.com/our-company)
Designed by spatial volume, not floor area. Creates a column of air mixing ceiling to floor to inhibit condensation, mold, and rust.
Includes one-touch mounting hardware. Low-cost installation even in warehouses where large HVLS fans won't fit.
| Type | Destratification Fan |
|---|---|
| Size (mm) | 445×391×551 (*3) |
| Coverage | 25 ft (*3) |
| Weight | 20 lb (*3) |
*1 Cool air temperature may vary depending on conditions such as ambient temperature and the surrounding environment. Because it uses water, use caution in areas where moisture is a concern.
*2 Basis and Calculation Method: Calculated based on the maximum airflow (Straight) of “791 CFM” for the “8" (20.3 cm) AXIAL AC PLASTIC MINI-PAK BLOWER (9532-15)” as listed in the catalog.
[Formula] 791 CFM × 0.02832 ≈ 22.4 m³/min (Converted as 1 CFM ≈ 0.02832 m³/min) | Source: Allegro Official Website [PDF] (https://www.allegrosafety.com/wp-content/uploads/2023/01/9532-15-9532-25-9532-15E-9532-25E-AC-Plastic-Blower.pdf)
*3 All specifications are for the H25-EC model.
*2 Basis and Calculation Method: Calculated based on the maximum airflow (Straight) of “791 CFM” for the “8" (20.3 cm) AXIAL AC PLASTIC MINI-PAK BLOWER (9532-15)” as listed in the catalog.
[Formula] 791 CFM × 0.02832 ≈ 22.4 m³/min (Converted as 1 CFM ≈ 0.02832 m³/min) | Source: Allegro Official Website [PDF] (https://www.allegrosafety.com/wp-content/uploads/2023/01/9532-15-9532-25-9532-15E-9532-25E-AC-Plastic-Blower.pdf)
*3 All specifications are for the H25-EC model.
