MEIDINGER AG

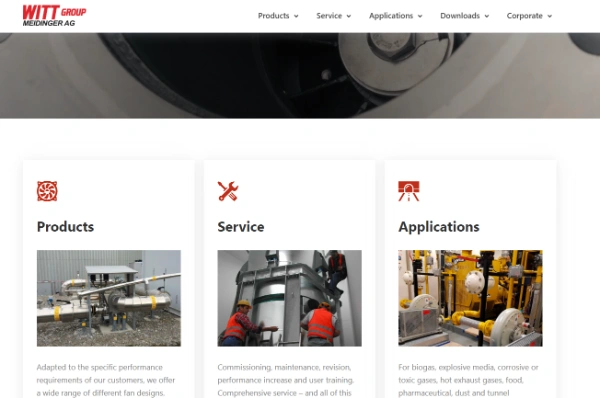

Source: Meidinger AG
https://www.meidinger.ch/

Based in Switzerland, Meidinger engineers and manufactures high-performance industrial fans. They offer a comprehensive portfolio covering centrifugal and axial fans for a wide spectrum of industrial applications. Buyers can specify ATEX-compliant designs, securing reliable ventilation solutions for explosive atmospheres, corrosive environments, and high-temperature exhaust operations.

Widely deployed in biogas plants, food processing, pharmaceuticals, and tunnel ventilation, their core strength lies in delivering fully custom-engineered, build-to-order designs meticulously tailored to exact customer specifications.

Product Examples of Industrial Fans
Offered by Meidinger

RNN Series RNN6

Situations Where
RNN Series RNN6 Works Best

The RNN6 is a highly efficient centrifugal fan featuring a backward-curved 6-blade impeller paired with an aerodynamically optimized suction cone. This design inherently limits power consumption increases even as airflow volumes rise, making it an ideal choice for industrial applications prioritizing maximum energy efficiency.

Standard material options include steel or aluminum. Utilizing an aluminum impeller significantly reduces starting current and inertia torque. Furthermore, engineers can specify stainless steel construction to meet the rigorous demands of specialized applications.

Product Specifications

Jet Fans (Design GT / Banana Jet®)

Source: Meidinger AG
https://www.meidinger.ch/en/products/jet-fans/

Situations Where
Jet Fans (Design GT / Banana Jet®) Works Best

The Design GT and Banana Jet® are advanced jet fans specifically engineered for complex ventilation systems in tunnels and large-scale car parks. Based on proven axial fan technology, the lineup includes variations like the Design GDT, which incorporates a bell-mouth inlet, allowing for highly flexible configurations tailored to specific project needs.

By actively projecting high-velocity airflow along the tunnel axis, these robust units are extensively deployed to ensure safe, effective long-distance ventilation in subterranean infrastructure and underground parking garages.

Product Specifications

Axial Flow Fans Design A / G

Situations Where
Axial Flow Fans Design A / G Works Best

The Design A and Design G series are highly versatile axial flow fans offering customizable specifications to match specific applications and installation environments.

Supporting casing thicknesses from 1.5 to 10 mm (0.06 to 0.39 in.) and diameters ranging from 250 to 3150 mm (9.8 to 124.0 in.), they empower engineers to specify exactly what is needed for the operating environment, whether for general manufacturing, marine vessels, or heavy industrial plants.

Design A features convenient service access for simplified maintenance, while Design G utilizes a long casing structure to fully enclose the motor. Additionally, the Design G lineup offers the Design GD variant, which comes equipped with an integrated bell-mouth inlet.

Product Specifications

Implementation Case Studies
of Meidinger Industrial Fans

No specific implementation case studies of industrial fans were published on the official website.

Company Information for Meidinger AG
