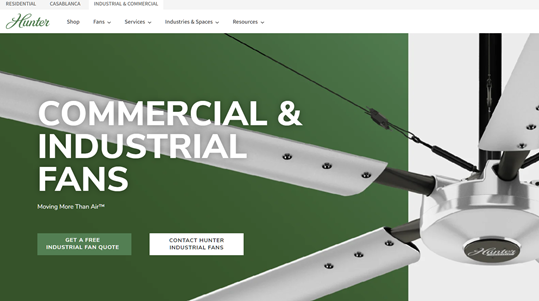

Hunter Industrial & Commercial
Source: Hunter Industrial & Commercial Official Website
https://www.hunterindustrial.com/
https://www.hunterindustrial.com/
In this article, we will explain the product examples, application scenes, and installation cases of industrial fans provided by Hunter Industrial & Commercial. Please use this as a reference to understand the conditions and installation situations where fans are most effective in industrial and commercial environments such as factories, warehouses, fitness facilities, and commercial spaces.
Product Examples of Industrial Fans
Offered by Hunter Industrial & Commercial
「TITAN HVLS FAN」
Source: Hunter Industrial & Commercial Official Website
https://industrialfans.hunterfan.com/products/titan-fan
https://industrialfans.hunterfan.com/products/titan-fan
Situations Where
Titan HVLS Fan Works Best
This HVLS (High-Volume, Low-Speed) ceiling fan is ideal for cooling and air circulation in large-scale industrial facilities, including manufacturing facilities, warehouses, distribution centers, agricultural/horticultural facilities, fitness centers, and automotive centers. With blades up to 24 feet in diameter and a coverage area of over 22,000 square feet, it is designed to lower the temperature throughout the facility by approximately 10 degrees, making it suitable for vast spaces that require uniform airflow from floor to ceiling. Its direct-drive motor technology ensures quiet and smooth operation, which also helps reduce the load on HVAC systems.
Product Specifications
| Blade Diameter | 14 ft to 24 ft |
|---|---|
| Coverage Area | 22,000 sq ft or more (approx. 2,044 sq m or more) |
| Input Power Voltage | AC Single-Phase 200-240V / AC Three-Phase 200-240V / AC Three-Phase 380-480V (50/60Hz) |
| Mounting Options | I-beam, Purlin structure, Unistrut, Glulam beam |
| Warranty Period | Limited Lifetime Warranty As warranties may have specific conditions or expiration dates, please contact the manufacturer directly for details. |
| Building Management Control | Supports BACnet IP, BACnet MSTP, and Modbus RTU |

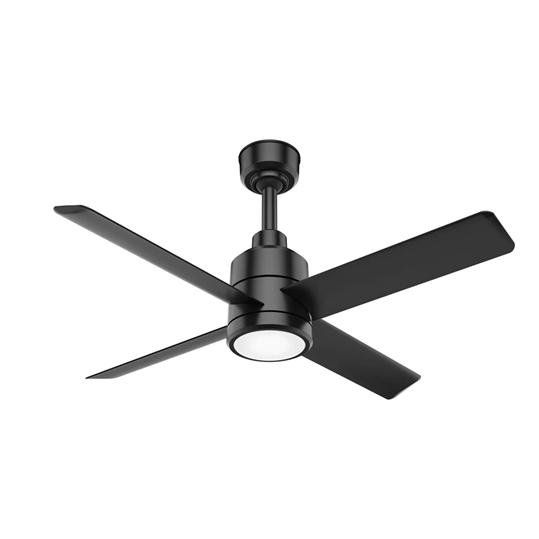

「Trak Edge Commercial Fan」
Source: Hunter Industrial & Commercial Official Website
https://industrialfans.hunterfan.com/products/trak-edge-commercial-fan
https://industrialfans.hunterfan.com/products/trak-edge-commercial-fan
Situations Where
Trak Edge Works Best
This commercial ceiling fan is suitable for spaces that require both design aesthetics and airflow performance, such as commercial facilities, light industrial environments, offices, and fitness studios. The reversible 8-speed DC motor and extruded aluminum blades provide a quiet and reliable airflow. With its built-in multi-fan networking function, up to 30 fans can be controlled with a single controller, making it easy to adapt to large spaces where multiple units are required. It is also designed for use in indoor areas as well as covered outdoor areas and patios.
Product Specifications
| Size | 5 ft / 6 ft / 7 ft / 8 ft |
|---|---|
| Motor | Reversible 8-speed DC motor |
| Power Supply | AC Single-Phase 100-120V / AC Single-Phase 200-240V (50-60Hz) |
| Blade Material | Extruded aluminum |
| Warranty Period | 5-year warranty (covering all parts) |
| Control Options | RF remote control included / 3-inch or 4-inch touchscreen wall controller / Supports BACnet gateway |
Implementation Case Studies
of Hunter Industrial & Commercial's Industrial Fans
No specific examples of industrial fan use were available on the official website.
What is Hunter Industrial & Commercial's Industrial Fans?
Delivering airflow tailored to the space, from warehouses and factories to fitness facilities and offices
The product lineup ranges from HVLS fans for factories and warehouses to ceiling fans for fitness facilities and offices, as well as wall-mounted air circulators. With a selection of products that allows you to configure an airflow environment suited to the facility's purpose and scale, they help support the improvement of comfort and air circulation.
Our media independently researches and introduces recommended industrial fans based on specific needs like cooling, exhaust, and ventilation. Please check our 3 selected products below.
Company Information:Hunter Industrial & Commercial
| Company Name | Hunter Fan Company（Hunter Industrial & Commercial） |
|---|---|
| Headquarters Address | 180 Threet Industrial Road Suite 120 Smyrna, TN 37167 |
| Official Website | https://www.hunterindustrial.com/ |
Three Recommended
Industrial Fan Products Chosen
by Cooling, Exhaust, and Ventilation
Industrial Fan Products Chosen
by Cooling, Exhaust, and Ventilation
Cooling
For Heat Stress Prevention
For Heat Stress Prevention
Gojoh
COOL FAN MIST
Source: Gojoh Official Website
(https://smile-fans.jp/products/cool-fan-mist/)
(https://smile-fans.jp/products/cool-fan-mist/)
6°C cooler than the surroundings (*1) for 8 hours. Powerful 25m reach + auto-swing to optimize your entire workspace.
Durable, hygienic stainless steel at a portable 210 lbs. Chemical-resistant and built for frequent relocation and long-term use.
| Type | Evaporative cooler |
|---|---|
| Dimensions (in/mm) |
Approx. 59.1" × 25.6" × 70.9" (1500 × 650 × 1800 mm) |
| Coverage Area |
Approx. 2,150–3,230 sq ft |
| Weight | Approx. 210 lb |
Exhaust
For Dust and Smoke Control in Confined Spaces
For Dust and Smoke Control in Confined Spaces
Allegro
8" COM-PAX-IAL Blower
Source: Allegro Official Website
(https://www.allegrosafety.com/product/8-axial-ac-plastic-mini-pak-blower/)
(https://www.allegrosafety.com/product/8-axial-ac-plastic-mini-pak-blower/)
Rapidly exhausts dust/smoke replacing approx. 23.5m³ of air/min (*2). Lightweight polyethylene body is corrosion, UV, and chemical resistant for harsh environments.
Weighs under 19 lbs (lighter than steel) with integrated ducting. Easy to carry and set up, ensuring ventilation protocols are never skipped due to hassle.
| Type | Portable ventilation blower |
|---|---|
| Dimensions (in/mm) |
Approx. 17.5" × 11.3" × 13.5" (445 × 286 × 343 mm) |
| Coverage Area |
N/A |
| Weight | Approx. 19 lb |
Ventilation
For Stagnant Air and Moisture Control
For Stagnant Air and Moisture Control
DuctSox
ZOO FANS H series
Source: DuctSox Official Website
(https://www.zoofans.com/our-company)
(https://www.zoofans.com/our-company)
Designed by spatial volume, not floor area. Creates a column of air mixing ceiling to floor to inhibit condensation, mold, and rust.
Includes one-touch mounting hardware. Low-cost installation even in warehouses where large HVLS fans won't fit.
| Type | Destratification Fan |
|---|---|
| Size (mm) | 445×391×551 (*3) |
| Coverage | 25 ft (*3) |
| Weight | 20 lb (*3) |
*1 Cool air temperature may vary depending on conditions such as ambient temperature and the surrounding environment. Because it uses water, use caution in areas where moisture is a concern.
*2 Basis and Calculation Method: Calculated based on the maximum airflow (Straight) of “791 CFM” for the “8" (20.3 cm) AXIAL AC PLASTIC MINI-PAK BLOWER (9532-15)” as listed in the catalog.
[Formula] 791 CFM × 0.02832 ≈ 22.4 m³/min (Converted as 1 CFM ≈ 0.02832 m³/min) | Source: Allegro Official Website [PDF] (https://www.allegrosafety.com/wp-content/uploads/2023/01/9532-15-9532-25-9532-15E-9532-25E-AC-Plastic-Blower.pdf)
*3 All specifications are for the H25-EC model.
*2 Basis and Calculation Method: Calculated based on the maximum airflow (Straight) of “791 CFM” for the “8" (20.3 cm) AXIAL AC PLASTIC MINI-PAK BLOWER (9532-15)” as listed in the catalog.
[Formula] 791 CFM × 0.02832 ≈ 22.4 m³/min (Converted as 1 CFM ≈ 0.02832 m³/min) | Source: Allegro Official Website [PDF] (https://www.allegrosafety.com/wp-content/uploads/2023/01/9532-15-9532-25-9532-15E-9532-25E-AC-Plastic-Blower.pdf)
*3 All specifications are for the H25-EC model.
