PennBarry

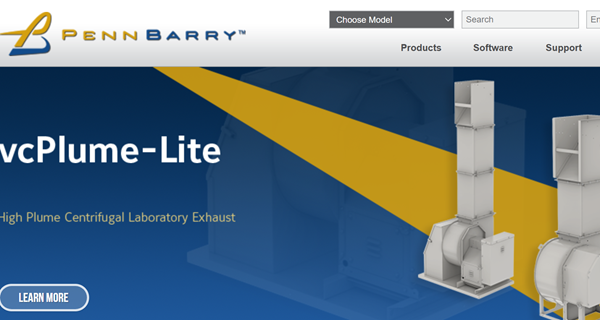

Source: PennBarry
https://www.pennbarry.com/
https://www.pennbarry.com/
PennBarry is a U.S.-based brand headquartered in Indiana, offering a lineup of ventilation products for commercial and light-industrial facilities under its Air System Components division, including energy recovery units, make-up air systems, kitchen hoods, and SupremeFan supply/exhaust products. This article introduces the axial fan lineup, which is designed to handle exhaust of contaminated or high-temperature air in industrial applications, as well as cooling and pressurizing indoor spaces through ductwork.
Product Examples of Industrial Fans
Offered by PennBarry
Tubeaxial「TXD, TXB」
Source: PennBarry
https://www.pennbarry.com/Catalog%20Home/Industrial/Industrial%20Axial/Tubeaxial%20(TXD,%20TXB)
https://www.pennbarry.com/Catalog%20Home/Industrial/Industrial%20Axial/Tubeaxial%20(TXD,%20TXB)
Situations Where the
PennBarry TXB Series Works Best
This is a belt-driven tubeaxial fan designed for low- to medium-pressure ducted applications. It is commonly used for exhausting contaminated or high-temperature air generated in industrial settings, and is also suited to supplying air through ductwork for cooling or pressurizing indoor spaces. Its compact housing allows it to move large volumes of air within a duct system at relatively low pressure loss, and it supports both horizontal and vertical mounting, making it a design that can be adapted to sites with limited installation space. Models with different blade configurations (6-blade propeller, low-speed propeller, and axial propeller) are available depending on the intended application.
Product Specifications
*The performance ranges listed represent values for the TXB Series as a whole.
| Maximum Airflow | 150,000 CFM |
|---|---|
| Static Pressure Range | 0 to 2.5 inches WG |
| Drive Type | Belt Drive |
| Mounting Orientation | Horizontal / Vertical |
| Model Variations | TXB-091 (6-Blade Propeller) / TXB-097 (Low-Speed Propeller) / TXB-098 (Axial Propeller) |
Panel Fan「PN」
Source: PennBarry
https://www.pennbarry.com/Catalog%20Home/Industrial/Industrial%20Axial/Panel%20Fan%20(PN)
https://www.pennbarry.com/Catalog%20Home/Industrial/Industrial%20Axial/Panel%20Fan%20(PN)
Situations Where
PN Series Works Best
This is a wall-mounted axial propeller fan suited to sites that need to move large volumes of air quickly across a range of industrial applications, including factories, commercial facilities, parking garages, mine ventilation, heat exchangers, and drying equipment. It is built with a rugged construction intended for long service life in demanding environments, and is offered in three models—belt drive (PNB), direct drive (PND), and low-speed belt drive (MBP)—allowing selection based on site conditions.
Product Specifications
| Maximum Airflow (PNB) | 110,000 CFM / up to 1.5 inches WG |
|---|---|
| Maximum Airflow (PND) | 85,450 CFM / 0 to 1.5 inches WG |
| Maximum Airflow (MBP) | 80,830 CFM / 0 to 1.5 inches WG |
| Size Range | PNB: 012–084 / PND: 012–060 / MBP: 024–072 |
| Drive Type | Belt Drive (PNB, MBP) / Direct Drive (PND) |
| Mounting Method | Wall-Mounted |
Implementation Case Studies of
PennBarry's Industrial Fans
No specific implementation case studies of industrial fans were published on the official website.
What is PennBarry's Industrial Fan?
A versatile industrial axial fan that moves large volumes of air in a compact housing
PennBarry's tubeaxial fans (TXD/TXB Series) are compact, versatile products capable of moving up to 150,000 CFM of air within low- to medium-pressure duct systems. With a choice of direct-drive or belt-drive configurations and mounting flexibility that supports both horizontal and vertical installation, they are suited to a range of industrial applications, from exhausting contaminated or high-temperature air to cooling and pressurizing indoor spaces.
Our media independently researches and introduces recommended industrial fans based on specific needs like cooling, exhaust, and ventilation. Please check our 3 selected products below.
Company Information:
PennBarry
| Company Name | PennBarry |
|---|---|
| Headquarters Address | 843 Indianapolis Ave., Lebanon, IN 46052, USA |
| Official Website | https://www.pennbarry.com/ |
Three Recommended
Industrial Fan Products Chosen
by Cooling, Exhaust, and Ventilation
Industrial Fan Products Chosen
by Cooling, Exhaust, and Ventilation
Cooling
For Heat Stress Prevention
For Heat Stress Prevention
Gojoh
COOL FAN MIST
Source: Gojoh Official Website
(https://smile-fans.jp/products/cool-fan-mist/)
(https://smile-fans.jp/products/cool-fan-mist/)
6°C cooler than the surroundings (*1) for 8 hours. Powerful 25m reach + auto-swing to optimize your entire workspace.
Durable, hygienic stainless steel at a portable 210 lbs. Chemical-resistant and built for frequent relocation and long-term use.
| Type | Evaporative cooler |
|---|---|
| Dimensions (in/mm) |
Approx. 59.1" × 25.6" × 70.9" (1500 × 650 × 1800 mm) |
| Coverage Area |
Approx. 2,150–3,230 sq ft |
| Weight | Approx. 210 lb |
Exhaust
For Dust and Smoke Control in Confined Spaces
For Dust and Smoke Control in Confined Spaces
Allegro
8" COM-PAX-IAL Blower
Source: Allegro Official Website
(https://www.allegrosafety.com/product/8-axial-ac-plastic-mini-pak-blower/)
(https://www.allegrosafety.com/product/8-axial-ac-plastic-mini-pak-blower/)
Rapidly exhausts dust/smoke replacing approx. 23.5m³ of air/min (*2). Lightweight polyethylene body is corrosion, UV, and chemical resistant for harsh environments.
Weighs under 19 lbs (lighter than steel) with integrated ducting. Easy to carry and set up, ensuring ventilation protocols are never skipped due to hassle.
| Type | Portable ventilation blower |
|---|---|
| Dimensions (in/mm) |
Approx. 17.5" × 11.3" × 13.5" (445 × 286 × 343 mm) |
| Coverage Area |
N/A |
| Weight | Approx. 19 lb |
Ventilation
For Stagnant Air and Moisture Control
For Stagnant Air and Moisture Control
DuctSox
ZOO FANS H series
Source: DuctSox Official Website
(https://www.zoofans.com/our-company)
(https://www.zoofans.com/our-company)
Designed by spatial volume, not floor area. Creates a column of air mixing ceiling to floor to inhibit condensation, mold, and rust.
Includes one-touch mounting hardware. Low-cost installation even in warehouses where large HVLS fans won't fit.
| Type | Destratification Fan |
|---|---|
| Size (mm) | 445×391×551 (*3) |
| Coverage | 25 ft (*3) |
| Weight | 20 lb (*3) |
*1 Cool air temperature may vary depending on conditions such as ambient temperature and the surrounding environment. Because it uses water, use caution in areas where moisture is a concern.
*2 Basis and Calculation Method: Calculated based on the maximum airflow (Straight) of “791 CFM” for the “8" (20.3 cm) AXIAL AC PLASTIC MINI-PAK BLOWER (9532-15)” as listed in the catalog.
[Formula] 791 CFM × 0.02832 ≈ 22.4 m³/min (Converted as 1 CFM ≈ 0.02832 m³/min) | Source: Allegro Official Website [PDF] (https://www.allegrosafety.com/wp-content/uploads/2023/01/9532-15-9532-25-9532-15E-9532-25E-AC-Plastic-Blower.pdf)
*3 All specifications are for the H25-EC model.
*2 Basis and Calculation Method: Calculated based on the maximum airflow (Straight) of “791 CFM” for the “8" (20.3 cm) AXIAL AC PLASTIC MINI-PAK BLOWER (9532-15)” as listed in the catalog.
[Formula] 791 CFM × 0.02832 ≈ 22.4 m³/min (Converted as 1 CFM ≈ 0.02832 m³/min) | Source: Allegro Official Website [PDF] (https://www.allegrosafety.com/wp-content/uploads/2023/01/9532-15-9532-25-9532-15E-9532-25E-AC-Plastic-Blower.pdf)
*3 All specifications are for the H25-EC model.
